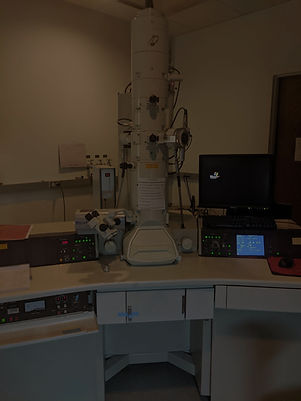

JEOL 1200 EX CTEM

conventional transmission electron microscope

Tungsten Filament

Voltage: 100 kV

Stage: Eucentric goniometer with +/- 60° tilt

Resolution: 0.45 nm

Magnification range: 50x - 1,000,000x,

AMT XR-80 TEM Digital Camera Series: large 8 Megapixel CCD Sensor 50 MHz High Speed, Low Noise Readout GigE Interface

Microscope: JEOL 1200 EX

Service contractor: EM Control

Manager: Carroll

Location: RM10 microscopy

Resources

Alignment procedures

SOP

Manual

Capabilities

This (1998) instrument has been rebuilt, refurbished, and upgraded (2025), to provide a state-of-the-art, multipurpose platform with excellent contrast for biological as well as materials samples a double condenser projection lens and bright/dark field imaging.

The microscope is managed and maintained by EM Control, a company out of Va with a long history of excellence in microscope management.
